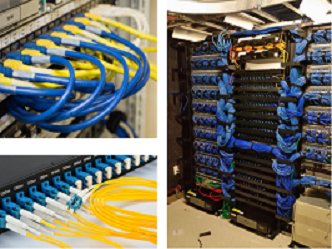

Fiber Optic cabling provides a far superior bandwidth than copper and while it is typically used for backbone connection between IDF’s and MDF’s is it fast becoming the choice for high quality and reliable analog and digital communications. It is also the solution for backbone connectivity and other connections limited by copper distances (currently 325ft).

Cat 6 is a cable standard for Gigabit Ethernet and other network protocols that is backward compatible with the Category 5e and Category 3 standards. Cat 6 features more stringent specifications for crosstalk and system noise. The cable standard is suitable for 10BASE-T / 100BASE-TX and 1000BASE-T (Gigabit Ethernet) connections. It provides performance of up to 250 MHz

Cat 5e cable is an enhanced version of Cat 5 that adds specifications for far-end crosstalk. Although 1000BASE-T was designed for use with Cat 6 cable, the tighter specifications associated with Cat 5e cable and connectors make it an excellent choice for use with 1000BASE-T. Despite the stricter performance specifications, Cat 5e cable does not enable longer cable distances for Ethernet networks: horizontal cables are still limited to a maximum of 325ft in length. Cat 5e cable performance characteristics and test methods are defined in TIA/EIA-568-B.2-2001.

Cat 3 cable is an unshielded twisted pair (UTP) cable designed to reliably carry data up to 10 Mbit/s. It is part of a family of copper cabling standards defined jointly by the Electronic Industries Alliance and the Telecommunications Industry Association. Category 3 was a popular cabling format among computer network administrators in the early 1990s, but fell out of popularity in favor of the very similar, but higher performing, Cat 5 standard. Now that Cat 5 is obsolete, most new structured cable installations are built with Cat 5e or Cat 6 cable. Cat 3 is currently still in use in two-line telephone systems, although Cat 5 or higher could do the same work and allows transition to VOIP.
